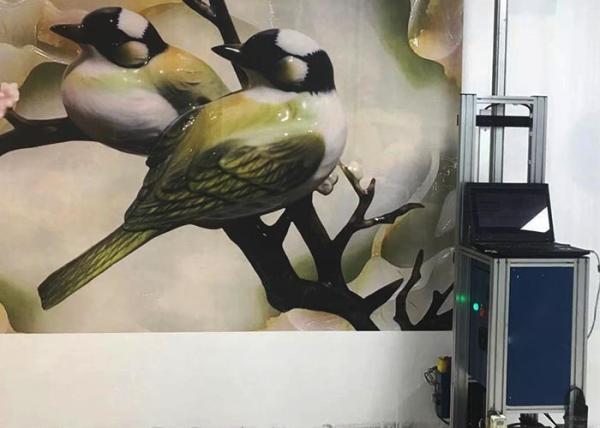

3 year warranty epson TX800 double nozzles Large Format 3D Wall
Mural Printing Machine with fast speed
quick details
1. Aluminum-magnesium alloy wall printing machine body, which has
higher strength, high structural accuracy, light weight and
durability.
2. The actual printing size of the inkjet printer for wall mural:
height 2000mm, the track standard width is 3m and the 3d vertical
wall printer can be extended if need.
3. High-precision brushless servo motor control system, vector
positioning, no strip grating, motor brushless, (avoids cleaning,
maintenance, garbled graphics after wear, need to be replaced
regularly, etc.) to achieve higher painting accuracy, faster
painting speed, and maintenance-free of the inkjet printer for wall
mural.
4. The inkjet printer for wall mural using high-definition
piezoelectric ink jet technology, high precision, high speed, and
durability. Special designed nozzle for industry usage.
The detailed parameter as follows.
| Modle Type | SSV-2 | |
| Ink base color | Double four colors , water-based INK | |
| Paint direction | Vertical | |
| Jet distance | 0.5-1CM | |
| Motherboard | 8-core high-speed CPU, 4GB RAM, Hi-Speed USB I/O port | |
| Nozzle type | EPSON, Japan Epson nozzle*2 |
| Motor | Three Intelligent motor +Reducer |
| Wall detection | Two Nano detector |
| Power down alarm | Real-time power failure alarm system |
| UPS power | Super uninterruptible power supply, Power outage 3hours |
| Ink supply system | Four-color ink cartridge integrated, 400 ml large-capacity ink
cartridge negative pressure system for special color, with sealing
plug and dust cover |
| Motor technology | Brushless motor, vector positioning system. No need for grating
bars to be affected by light |
Print material | Suitable for users inside and outside putty wall, large white,
imitation porcelain wall, latex paint wall, inkjet cloth, wall
clothing, color glaze, color paint wall, etc.Tile, glass, acrylic,
wood, pvc and metal materials ( Add layer) |
| Print resolution | 360*720dpi / 720*1080dpi / 720*1440dip / 1080*1440dpi /
1440*2880dpi |
| Support image format | PSD/CDR/JPG/JPGE/PNG/BMP/TIFF/AI/PDFAnd other image formats. Some
formats need to be converted |
| Ink consumption/㎡ | 10-20ML, depends on the quality of the pictures you want to print |
| Print size | 2m height with any width, the machine is equipped with a laser
positioning system, and large pictures over height 2 meters can be
seamlessly stitched and printed. |
| Power supply | AC110V(90-132V) / AC220V(180-264V) AC,47-63HZ |
| Noise | Standby less than 15dba, work 50dba |
| printing speed | fast | Mode | Speed | | |
| medium | sketch mode | 24㎡/h | |
| slow | produce mode | 18㎡/h | |
| three speed | quality mode | 12㎡/h | |
| | Fine mode | 9㎡/h | |
| suppying system | negative pressure,400ml ink tank,colors in one unit |
| Technology | VSDT Variable ink drop technique feature technology |
| photo format | support PNG/JPG/TIFF/PDF/PSD/AI AND CDR.ETC |
| Precision | 720x720 DPI/720X1080DPI/720X1440DPI/720X2280DPI |
| Print size | No limite |
| Power supply | AC 110V /220V Frequancy:50hz/60hz |
| power consumption | no load 20w ,load 120w |
| Noise | standby <20DBA ,Working <50DBA |
| Storage | —30 -+60℃ |
| operation | ,-10-+50℃ |
| operation system | window ,xp/ win 7/win8 ,win 10 |
| language | English and chinese
|
Q1:Is ink environmentally friendly?
A:ink conforms with the standard of REACH,RoHS and CE,being
virtually free of volatile organic compounds(VOC).So yes,ink is
environmentally friendly.
Q2:How can I buy a wall Printer Machine?
A:List your requirements in details and email us,and our sales
representative will contact you a.s.a.p.And also welcome to visit
our company office and factory for a face-to-face conversation.
Q3:How can I get service support?
A:BNS offers on-time online service,lifelong support for installing
machines via video,phone or email.
Q4:How can I get spare parts and ink?
A:You coud get spare parts and inks by emailing us or visiting our
website for more supports.
