P3.91-7.81 smd transparent led display for shop window glass or
glass wall glass 3 years warranty
Product Description:
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are
comprehensive, and also we have three display mode as VGA+VIDE and
VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7
millions, and the brightness, contrast, saturation, chroma can be
adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video,
2-dimention, 3-dimention cartoon and other information with your PC
does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content,
and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent
capability of antisepsis, waterproof
All kinds of parameter style as follows.if you need more detailed,
you can contact me directly.
| Item | P2.9 | P3.9 | P7.8 |
| Pixel Pitch | 2.9mm | 3.91mm | 47.82mm |
| LED packing | SMD2121 | SMD2121 | SMD2121 |
| Physical Density | 112,896 pixels/sqm | 65,536 pixels/sqm | 43,264 pixels/sqm |
| Brightness | 4500nits | 5000ntis | 5000nits |
| Scan | 1/16 | 1/16 | 1/8 |
| Refresh | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Gray Level | 14bit/16bit/18bit | 14bit/16bit/18bit | 14bit/16bit/18bit |
| Viewing angle(H/V) | 160° / 160° | 160° / 160° | 160° / 160° |
| Cabinet size | 500*1000mm | 500*1000mm | 500*1000mm |
| Weight | 10kg/sqm | 10kg/sqm | 10kg/sqm |
| Protection rating | IP30 front / IP40 back | IP30 front / IP40 back | IP30 front / IP40 back |
| Product item | LED transparent display(indoor installation)Frontal illumination |
| Lamp specifications | Pixel composition | density(dots/sqm) | Cabinet size Millimeter | drive mode | Brightnes:CD |
| P 3.91-7.82 | 2121 | 1R1G1B | 32768 | 1000*1000 | 1/16S | ≥1200 |
| 2121 | 1R1G1B | 32768 | 1000*1000 | 1/7S | ≥2500 |
| p3.91-7.82 | 1921 | 1R1G1B | 32768 | 1000*1000 | 1/16S | ≥2500 |
| 2727 | 1R1G1B | 32768 | 1000*1000 | 1/7S | ≥5000 |
| P7.82-7.82 | 1921 | 1R1G1B | 16384 | 1000*1000 | 1/8S | ≥2000 |
| 2727 | 1R1G1B | 16384 | 1000*1000 | 1/4S | ≥4500 |
| P7.82-15.625 | 2727 | 1R1G1B | 8192 | 1000*1000 | 1/8S | ≥2000 |
| P10.4-10.4 | 3535 | 1R1G1B | 9216 | 1000*1000 | 1/6S | ≥2500 |
| 3535 | 1R1G1B | 9216 | 1000*1000 | 1/3S | ≥5500
|

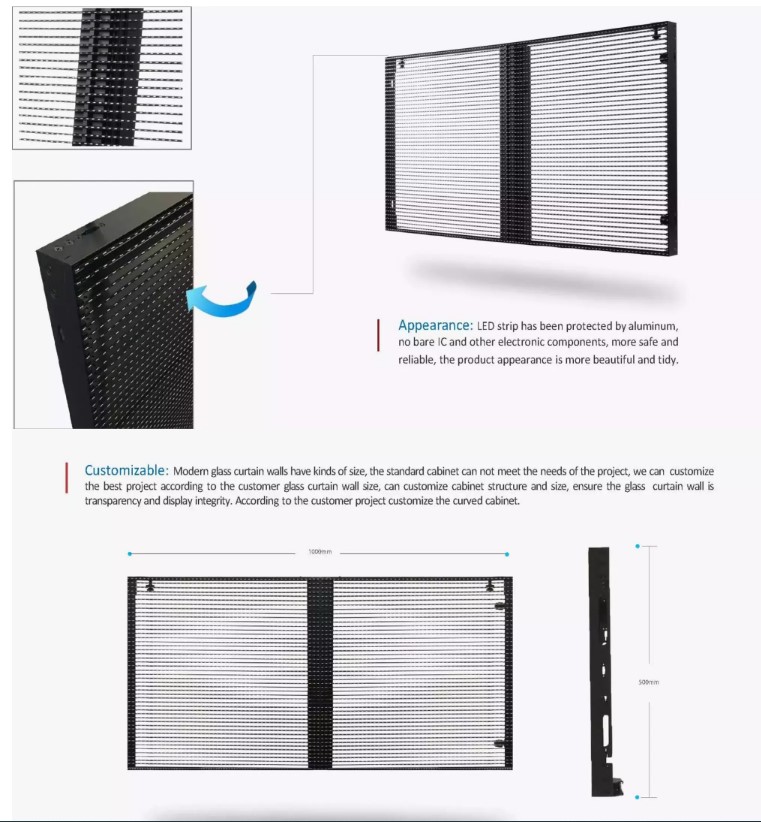

The transparent led display project case as follows.
Warranty:
We guarantee all our displays, modules, parts for two full years.
During this time, we will replace or amend all our goods for free
if there is something wrong with them. We provide lifetime
maintenance and charge only for the raw materials. We provide
technology training for free, which contains the operation and
maintenance training of the LED screens in the factory. We also
provide the operation manual, software, test report and so on. Any
associated CAD drawing on how to fix up the display and some other
expert suggestion will be provided.
Technology Training:
1. We provide the technology training for free, which contains the
operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
Documents and Certification:
1. We provide the operation manual, software, test report and so
on.
2. We can also provide all kinds of certification such as CE, UL
and so on.
CAD Drawing and Fixing:
1. We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2. We will send our engineers to your place if we are expected
after our negotiation.
Additional service:
We provide you the forwarding information, and some other
information ,such as flight box, structure information for your
reference for free.
