Nationstar led lamp outdoor transparent LED Display Glass Windows
Wall LED Display 3 years warranty
Advantage
1. High Degree of Visibility
65% transparent see-through, so it is convenient for people inside
and outside to look-through. The integreted LED lamps are ery tiny
and almost invisible from outside of the building.
2.Compact Design and Light Weight
8mm thickness of the LED panel has it almost suitable for any glass
wall building. The weight is only 14kg/sqm and minimizes the load
to the glass wall.
3.Ease of the Installation and Maintenance
No need to change any building structure. The modules can be stuck
to the back of the glass wall by the special glue which presented
by us. It needs only 10 second to install one module. Should any
maintence occurs, it only requires to do it at the indoor.
4.Saving Money in Decoration for the Architecture
Since the LED glass wall makes the vivid decoration and
advertising, it saves other lights to lighting up the building.
5.Wide Application
The Glass Wall LED Screen can be applied wherever the glass wall
existed such as commercial building, landmark, architecture, art
center, shopping mall, super market, shain stores etc.
All kinds of parameter style as follows.if you need more detailed,
you can contact me directly.
Item | Specifications |
LED Module | Color configuration | SMD2121/1921 1R1G1B 3 in 1 |
Pixel Pitch(mm) | 3.91x7.81mm | 7.81*7.81mm |
Module Size(mm) | 500(W)× 125(H) |
Module Weight(kg) | 0.35 |
Module Max Power(W) | 25 |
Module Quantity(W×H) | 2×4 |
Cabinet | Cabinet Resolution(W×H) | 256×64 | 128×64 |
Cabinet Size(mm) | 1000(W)×500(H)×80(D) |
Cabinet Weight(kg) | ≤6 |
Pixel Density(Dot/m2) | 16384 |
Transparency | 55%-72% |
Cabinet Material | Die Casting Aluminum |
Optical parameter | Brightness Control Level | 256 degree by software |
Brightness Control Mode | Automatically/Manul Operation |
Brightness at White(nits) | ≥800, can be adjusted |
Viewing Angel(H/V°) | 140/140 |
Max. Power(W/m2) | 380 |
Ave.Power(W/m2) | 190 |
AC Input | AC110~220V10%, 50~60Hz, |
Drive Mode | 1/16Scan | 1/8Scan |
Grey Scale | 16bits |
Refresh rate | ≥3840Hz/s,can be adjusted |
Life Span | >100,000H |
Working Temperature,Humidity | -20℃~+50℃, |
| Product item | LED transparent display(indoor installation)Frontal illumination |
| Lamp specifications | Pixel composition | density(dots/sqm) | Cabinet size Millimeter | drive mode | Brightnes:CD |
| P 3.91-7.82 | 2121 | 1R1G1B | 32768 | 1000*1000 | 1/16S | ≥1200 |
| 2121 | 1R1G1B | 32768 | 1000*1000 | 1/7S | ≥2500 |
| p3.91-7.82 | 1921 | 1R1G1B | 32768 | 1000*1000 | 1/16S | ≥2500 |
| 2727 | 1R1G1B | 32768 | 1000*1000 | 1/7S | ≥5000 |
| P7.82-7.82 | 1921 | 1R1G1B | 16384 | 1000*1000 | 1/8S | ≥2000 |
| 2727 | 1R1G1B | 16384 | 1000*1000 | 1/4S | ≥4500 |
| P7.82-15.625 | 2727 | 1R1G1B | 8192 | 1000*1000 | 1/8S | ≥2000 |
| P10.4-10.4 | 3535 | 1R1G1B | 9216 | 1000*1000 | 1/6S | ≥2500 |
| 3535 | 1R1G1B | 9216 | 1000*1000 | 1/3S | ≥5500
|

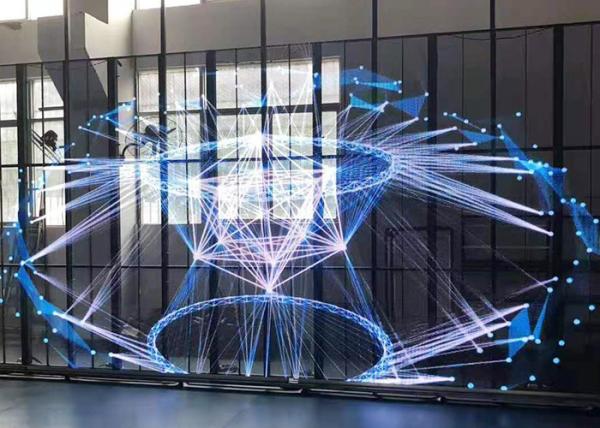

The transparent led display project case as follows.
