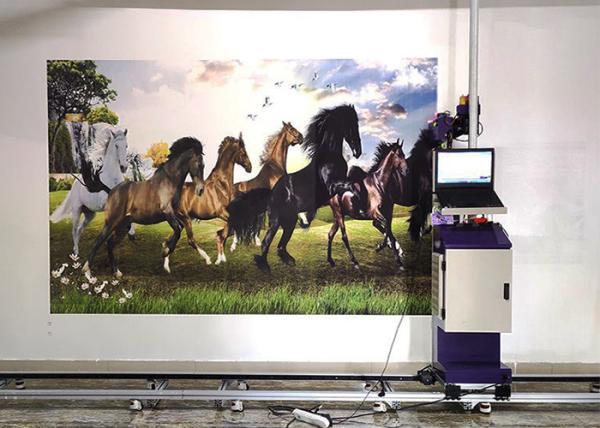

DX5/DX7/DX800 Print Head easy to operate direct wall inkjet printer
for outdoor and indoor advertisement usage
In order to meet customer demand for the majority of the wide
format printing, Maxwaver Laser launched a new horizontal wall
printer. This direct to wall inkjet printer adopts the imported
piezoelectric nozzle in Japan. The painting is clear and bright,
the design of the machine is smooth, the machine body is removable,
portable and easy to use. This machine is applicable to a variety
of wall painting, such as wall putty powder, paint the walls, tile
walls, diatom mud wall, canvas, paper etc.
Detailed parameter as follows.
| Modle Type | SSV-2 | |
| Ink base color | Double four colors , water-based INK | |
| Paint direction | Vertical | |
| Jet distance | 0.5-1CM | |
| Motherboard | 8-core high-speed CPU, 4GB RAM, Hi-Speed USB I/O port | |
| Nozzle type | EPSON, Japan Epson nozzle*2 |
| Motor | Three Intelligent motor +Reducer |
| Wall detection | Two Nano detector |
| Power down alarm | Real-time power failure alarm system |
| UPS power | Super uninterruptible power supply, Power outage 3hours |
| Ink supply system | Four-color ink cartridge integrated, 400 ml large-capacity ink
cartridge negative pressure system for special color, with sealing
plug and dust cover |
| Motor technology | Brushless motor, vector positioning system. No need for grating
bars to be affected by light |
Print material
| Suitable for users inside and outside putty wall, large white,
imitation porcelain wall, latex paint wall, inkjet cloth, wall
clothing, color glaze, color paint wall, etc.Tile, glass, acrylic,
wood, pvc and metal materials ( Add layer) |
| Print resolution | 360*720dpi / 720*1080dpi / 720*1440dip / 1080*1440dpi /
1440*2880dpi |
| Support image format | PSD/CDR/JPG/JPGE/PNG/BMP/TIFF/AI/PDFAnd other image formats. Some
formats need to be converted |
| Ink consumption/㎡ | 10-20ML, depends on the quality of the pictures you want to print |
| Print size | 2m height with any width, the machine is equipped with a laser
positioning system, and large pictures over height 2 meters can be
seamlessly stitched and printed. |
| Power supply | AC110V(90-132V) / AC220V(180-264V) AC,47-63HZ |
| Noise | Standby less than 15dba, work 50dba |
`
Wall painting machine manufacturers talk about the benefits of wall
painting in kindergartens
1. Kindergarten wall paintings are kept for a long time, and the
indoors are theoretically permanent preservation;
2. The kindergarten wall painting is modern and simple, easy to
clean, so that the kindergarten classrooms can be invested in
one-time, and the new environment will be preserved forever;
3. The material used for wall painting in kindergartens is acrylic,
which is green and environmentally friendly. It is a common wall
painting paint today. Others, such as wallpaper or colored
cardboard and glue, contain toxic substances and are not good for
children's growth;
4. The kindergarten wall painting is done at one time, and the wall
is no longer considered to be reprocessed the following year; while
the paper-cut stickers can only be stored for one year, some will
fall off after one year, and some will fade or be full of thick
dust. When not in use, the sticker needs to be torn off and
re-applied, and the wall itself will be damaged in the process of
tearing off, and the wall needs to be repainted as the base layer.
Every year, making wall bottoms and pasting paper-cuts is costly
and time-consuming;
5. Kindergarten wall painting is also the most common way of
expression in Japan, Taiwan, Korea and other places. The
characteristic is that it can express vivid and natural graphics,
which can be integrated with the environment, and it also allows
children to get close to the atmosphere of art.
