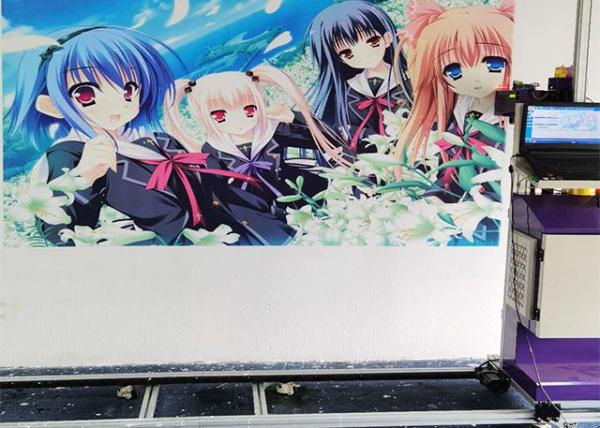

2.5m height 6m length width direct wall inkjet printer for outdoor
and indoor wall painting usage
The current wall painting machine has a positioning function, which
can automatically adjust according to your uneven wall. Now each
head of the nozzle has a device to protect the nozzle, and the wall
within 2-5cm can automatically adjust and print. After purchasing
the wall painting machine, professional and technical personnel
will be trained on site
Compared with the cost of labor and machinery, if the area is
large, it usually requires several painters to paint the wall.
Although this machine has a one-time investment of tens of
thousands, the person who operates the machine does not need to
have an artistic foundation. Even if you don't know how to write,
you only need simple operating software to operate it. You don't
need to spend energy on learning hand-drawing. How much did you
teach at school? Applicable places: cultural propaganda, schools,
hotels, etc.
Currently, pictures of this machine can be seen in many places. I
will not list them all here. A few days ago, if you participate in
the comparison of making money and not making money, the cost of
wall painting machine and hand paint will come out. Of course, I
admit that hand painting is more vivid than machine painting, but
have you considered if there is a big project Order, when will you
finish painting by hand?
Now the wall painting machine is basically assembled and can be
disassembled. If some are damaged, they can be disassembled
directly, and the courier can be sent directly to the manufacturer.
There is no ink on the wall. How do you paint the wall with putty
powder and paint it.
The detailed parameter as follows.
| Modle Type | SSV-2 | |
| Ink base color | Double four colors , water-based INK | |
| Paint direction | Vertical | |
| Jet distance | 0.5-1CM | |
| Motherboard | 8-core high-speed CPU, 4GB RAM, Hi-Speed USB I/O port | |
| Nozzle type | EPSON, Japan Epson nozzle*2 |
| Motor | Three Intelligent motor +Reducer |
| Wall detection | Two Nano detector |
| Power down alarm | Real-time power failure alarm system |
| UPS power | Super uninterruptible power supply, Power outage 3hours |
| Ink supply system | Four-color ink cartridge integrated, 400 ml large-capacity ink
cartridge negative pressure system for special color, with sealing
plug and dust cover |
| Motor technology | Brushless motor, vector positioning system. No need for grating
bars to be affected by light |
Print material
| Suitable for users inside and outside putty wall, large white,
imitation porcelain wall, latex paint wall, inkjet cloth, wall
clothing, color glaze, color paint wall, etc.Tile, glass, acrylic,
wood, pvc and metal materials ( Add layer) |
| Print resolution | 360*720dpi / 720*1080dpi / 720*1440dip / 1080*1440dpi /
1440*2880dpi |
| Support image format | PSD/CDR/JPG/JPGE/PNG/BMP/TIFF/AI/PDFAnd other image formats. Some
formats need to be converted |
| Ink consumption/㎡ | 10-20ML, depends on the quality of the pictures you want to print |
| Print size | 2m height with any width, the machine is equipped with a laser
positioning system, and large pictures over height 2 meters can be
seamlessly stitched and printed. |
| Power supply | AC110V(90-132V) / AC220V(180-264V) AC,47-63HZ |
| Noise | Standby less than 15dba, work 50dba |
| Model type: | WPM-S3 |
| Machine body | Aluminum magnesium ,alloy profiles, frame structure |
| Assemble way | movable wheels and slide railway and rapid assemblely |
| Operation | Automatically controlled by computer |
| printhead | epson industrial nozzles x3pcs |
| ink type: | specialized water-base ink for wall printer |
| printing speed | fast | Mode | Speed | | |
| medium | sketch mode | 24㎡/h | |
| slow | produce mode | 18㎡/h | |
| three speed | quality mode | 12㎡/h | |
| | Fine mode | 9㎡/h | |
| suppying system | negative pressure,400ml ink tank,colors in one unit |
| Technology | VSDT Variable ink drop technique feature technology |
| photo format | support PNG/JPG/TIFF/PDF/PSD/AI AND CDR.ETC |
| Precision | 720x720 DPI/720X1080DPI/720X1440DPI/720X2280DPI |
| Print size | No limite |
| Power supply | AC 110V /220V Frequancy:50hz/60hz |
| power consumption | no load 20w ,load 120w |
| Noise | standby <20DBA ,Working <50DBA |
| Storage | —30 -+60℃ |
| operation | ,-10-+50℃ |
| operation system | window ,xp/ win 7/win8 ,win 10 |
| language | English and chinese |
Our machine can be used outside and inside .The pictures can be
very clearly. Hope you love our effect!
First of all, you still need to pay attention to the surrounding
environment when using this equipment. Long-term use without paying
attention to maintenance will affect the printing effect of the
wall painter. If things go on like this, it will also affect the
service life of the wall painter's nozzles and other accessories.
Secondly, the wall painting machine is easy to operate, and the
wall painting machine still needs professional training before it
can be used freely. Failure to study seriously during the training
resulted in extremely easy damage to the nozzles and parts of the
wall painting machine when operating the wall painting machine.
Improper operation can also easily cause debris to enter the
nozzle, which can easily cause blockage of the nozzle and affect
the printing effect. Moreover, if it is serious, it will cause
damage to the nozzle. Once the nozzle is broken, the equipment will
not operate normally.
Also, every accessory of the wall inkjet printer is very important,
and it cannot be disassembled at will. Some customers arbitrarily
disassemble the accessories, especially the related accessories of
the ink cartridge, when they are in use. Improper disassembly will
cause the sundries in the air to enter the ink, and long-term use
will also cause the nozzle to block.
Finally, the maintenance of equipment is very important. Before the
equipment is suspended, the nozzle must be cleaned, and the nozzle
must be placed on the moisturizing sponge, to avoid the
deterioration of the picture clarity due to the entry of debris
even after the nozzle is stored for a long time. After the
equipment is shut down, the nozzle should be tightly wrapped with
plastic wrap, so as to reduce the volatilization of the ink inside
and extend the service life of the nozzle.
