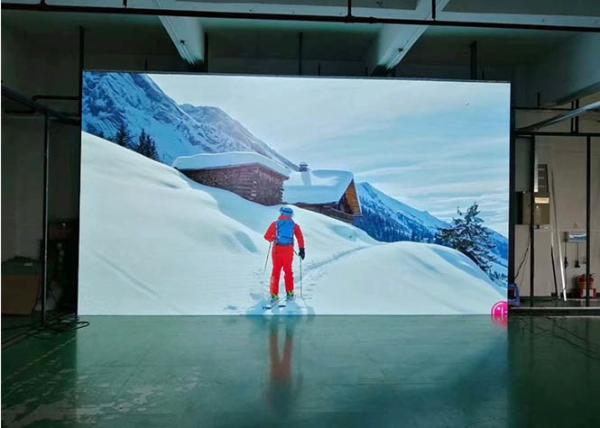

super thin less weight die cast aluminum cabinet 576x576mm indoor
rSmall Pixel Pitch LED Display 3 years warranty
The features as follows.
1. Application integration design. easy installation,easy debugging
and maintainance.
2. UV -resistance,anti-distortion module kit,roughness ,ensure the
best screen display.
3. Dual-channel heat sink design,decay,long life span.
4. Professional mask design.dustproof and water-proof .protection
class IP65.
5. Totally water-proof ,all tested well before shipping.
6. New structure design,fixed for lifting.lamination required.
The detailed specification as follows.
| Specification | Drive method | module size | pixel | Pixel composition | Point density | Cabinet size / length and width |
| P3.91die cast aluminum(SMD) | 1/8 scan | 250*250mm | 64*64 | 1R1G1B | 65410 | 500*1000MM |
| P3.91iron cabinet(SMD) | 1/8 scan | 250*250mm | 64*64 | 1R1G1B | 65410 | 1000*1000MM |
| P4(SMD)die cast aluminum | 1/8 scan | 256*128MM | 64*32 | 1R1G1B | 62500 | 512*512MM |
| P4(SMD) | 1/8 scan | 256*128MM | 64*32 | 1R1G1B | 62500 | 768*512MM |
| P4.81die cast aluminum(SMD) | 1/13scan | 250*250mm | 52*52 | 1R1G1B | 43222 | 500*1000MM |
| P5(SMD) | 1/8 scan | 320*160MM | 32*32 | 1R1G1B | 40000 | 960*960MM |
| P5(SMD)die cast alumiunm | 1/8 scan | 320*160MM | 64*32 | 1R1G1B | 40000 | 640*640MM |
| P5.95(SMD) die cast aluminum | 1/7 scan | 250*250mm | 42*42 | 1R1G1B | 28246 | 500*1000MM |
| P6(SMD) | 1/8 scan | 192*192MM | 32*32 | 1R1G1B | 27778 | 960*960MM |
| P6(SMD)die cast aluminum | 1/8 scan | 192*192MM | 32*32 | 1R1G1B | 27778 | 576*576MM |
| P6.67(SMD)die cast alumium | 1/8 scan | 320*160MM | 48*24 | 1R1G1B | 22478 | 640*640MM |
| P8(SMD) | 1/4 scan | 256mm*128mm | 32*16 | 1R1G1B | 15625 | 1024mm*768mm |
| P8(SMD)die cast aluminum cabinet | 1/4 scan | 320mm*160mm | 40*20 | 1R1G1B | 15625 | 640mm*640mm |
| P10(DIP) | 1/4 scan | 160mm*160mm | 16*16 | 1R1G1B | 10000 | 960mm*960mm |
| P10(SMD) | 1/4 scan | 320mm*160mm | 32*16 | 1R1G1B | 10000 | 960mm*960mm |
| P10(SMD) | 1/2 scan | 320mm*160mm | 32*16 | 1R1G1B | 10000 | 960mm*960mm |
| P10(SMD)die cast aluminum | 1/4 scan | 320mm*160mm | 32*16 | 1R1G1B | 10000 | 640mm*640mm |
Corporate culture: profession innovate be enterprising cooperation
win-win.
Mission: To provide professional.leading control system solutions
for customers to enhance the competitiveness
of products and brands and market value.
Vision:Make the display more beautiful,more intelligent,to do the
world's leading brands in the field of led display control.
Value:innovation to enhance the value ,quality cast brand
,professional achievement customers.
1. Lightweight and ultra-thin:
the traditional LED display cabinet has relatively low cost, and
its cabinet is very bulky. The LED rental screen boxes used in the
stage performance industry are basically aluminum boxes. The weight
of the aluminum box is about 30-50kg/m2. It has the characteristics
of light weight and good thermal conductivity.
2. Small error and zero seam:
Because the traditional LED display box adopts sheet metal
processing methods, this kind of processing technology itself has
large errors, and it is easy to deform after processing, so the
error is in the millimeter level, which is difficult to achieve the
display The screen requires zero stitching. The LED display rental
aluminum box body adopts the production process of module forming
and machining, which can control the error within one tenth of a
millimeter, which can completely meet the requirements of zero
stitching.
3. Fast installation:
due to the aluminum structure of the box, the weight is lighter,
the accuracy is higher, and the disassembly is convenient and
quick. The technicians can join the single box within a few
minutes, which greatly shortens the installation and disassembly
time and saves labor costs. .
4. Light weight and thin structure:
The LED rental display is light in weight and thin in structure. It
has the functions of hoisting and quick installation, so as to meet
the requirements of rapid installation, disassembly and
transportation required by the rental occasion. Easy to install and
unload, release and easy to operate, the whole screen is fastened
and connected by fast bolts, can be installed and dismantled
accurately and quickly, and can be assembled in different shapes to
meet site requirements.
5. Unique process:
unique structural design of welding process optimization, to avoid
frequent handling of electronic products caused by poor contact of
the solder joints on site and other conditions.
