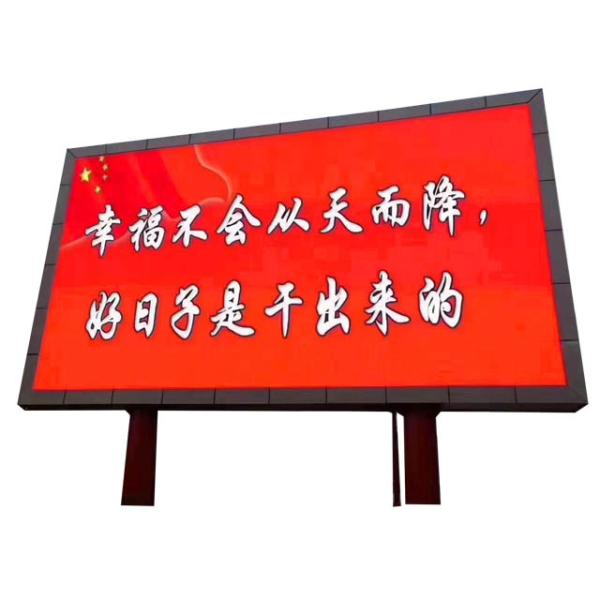

Nationstar led lamp high definition full color outdoor fixed led
display for video usage 3years warranty
Large outdoor LED displays are well known, and they are usually
used in advertising, traffic information and cultural exchanges. In
large and medium-sized cities around the world, a variety of large
outdoor LED displays are scattered in every corner of the city
center, and even become a highlight of the city center. It is
precisely because of the wide application of large outdoor LED
displays that more and more people are interested in it. Shenzhen
led display manufacturers will share with you the characteristics
of outdoor LED displays
The specifcation and parameters as follows:
| Specification | Drive method | module size | pixel | Pixel composition | Point density | Cabinet size / length and width |
| P3.91die cast aluminum(SMD) | 1/8 scan | 250*250mm | 64*64 | 1R1G1B | 65410 | 500*1000MM |
| P3.91iron cabinet(SMD) | 1/8 scan | 250*250mm | 64*64 | 1R1G1B | 65410 | 1000*1000MM |
| P4(SMD)die cast aluminum | 1/8 scan | 256*128MM | 64*32 | 1R1G1B | 62500 | 512*512MM |
| P4(SMD) | 1/8 scan | 256*128MM | 64*32 | 1R1G1B | 62500 | 768*512MM |
| P4.81die cast aluminum(SMD) | 1/13scan | 250*250mm | 52*52 | 1R1G1B | 43222 | 500*1000MM |
| P5(SMD) | 1/8 scan | 320*160MM | 32*32 | 1R1G1B | 40000 | 960*960MM |
| P5(SMD)die cast alumiunm | 1/8 scan | 320*160MM | 64*32 | 1R1G1B | 40000 | 640*640MM |
| P5.95(SMD) die cast aluminum | 1/7 scan | 250*250mm | 42*42 | 1R1G1B | 28246 | 500*1000MM |
| P6(SMD) | 1/8 scan | 192*192MM | 32*32 | 1R1G1B | 27778 | 960*960MM |
| P6(SMD)die cast aluminum | 1/8 scan | 192*192MM | 32*32 | 1R1G1B | 27778 | 576*576MM |
| P6.67(SMD)die cast alumium | 1/8 scan | 320*160MM | 48*24 | 1R1G1B | 22478 | 640*640MM |
| P8(SMD) | 1/4 scan | 256mm*128mm | 32*16 | 1R1G1B | 15625 | 1024mm*768mm |
| P8(SMD)die cast aluminum cabinet | 1/4 scan | 320mm*160mm | 40*20 | 1R1G1B | 15625 | 640mm*640mm |
| P10(DIP) | 1/4 scan | 160mm*160mm | 16*16 | 1R1G1B | 10000 | 960mm*960mm |
| P10(SMD) | 1/4 scan | 320mm*160mm | 32*16 | 1R1G1B | 10000 | 960mm*960mm |
| P10(SMD) | 1/2 scan | 320mm*160mm | 32*16 | 1R1G1B | 10000 | 960mm*960mm |
| P10(SMD)die cast aluminum | 1/4 scan | 320mm*160mm | 32*16 | 1R1G1B | 10000 | 640mm*640mm |
| P16(DIP) | Static full color | 256mm*256mm | 16*16 | 1R1G1B | 3906 | 1024mm*1024mm |
| P20(DIP) | Static full color | 320mm*160mm | 16*8 | 1R1G1B | 2500 | 1280mm*960mm |
In order to ensure that the image of the LED display will not be
distorted, the surface flatness of the outdoor
LED display must be kept within ±1mm. If this requirement is not
met, and the phenomenon of local bumps
will cause the outdoor LED display to be There is a problem of
blind angle in the viewing angle when playing the video.
Therefore, it can be said that flatness is a major factor in
judging high-quality outdoor LED displays.
Large-screen LED displays installed outdoors will be affected by
the weather outdoors. For example, the outdoor brightness is
different between sunny days and rainy days, and if the brightness
of the display cannot be adjusted automatically, the effect will be
different under different weather conditions, and it will even be
greatly reduced. In order not to affect the viewing effect of the
target audience, the outdoor large LED display will have the
automatic brightness adjustment function, that is, according to the
outdoor weather conditions, the brightness of the display screen is
automatically adjusted to achieve the best display effect.
