High-accuracy Wired printing Special environmentally friendly
organic ink Wall mural printing machine 3 years warranty
1,Continuous Ink Supply System, fill system of the wall printer can
effectively reduce the painting scrap rate.
2. Built-in battery interface (can be installed built-in power
supply system, the mural printing machine power off for about 8
hours).
3. The wall prints online adopts advanced AC servo control
technology to ensure higher precision printing, better stability
and longer service life of the mural printing machine.
4. Integrated head design of the machine, separable structure.
avoid the damaged during moving, printhead protect structure
extending the actual life of the printing head.
The detailed parameter as follows.
| Modle Type | SSV-2 | |
| Ink base color | Double four colors , water-based INK | |
| Paint direction | Vertical | |
| Jet distance | 0.5-1CM | |
| Motherboard | 8-core high-speed CPU, 4GB RAM, Hi-Speed USB I/O port | |
| Nozzle type | EPSON, Japan Epson nozzle*2 |
| Motor | Three Intelligent motor +Reducer |
| Wall detection | Two Nano detector |
| Power down alarm | Real-time power failure alarm system |
| UPS power | Super uninterruptible power supply, Power outage 3hours |
| Ink supply system | Four-color ink cartridge integrated, 400 ml large-capacity ink
cartridge negative pressure system for special color, with sealing
plug and dust cover |
| Motor technology | Brushless motor, vector positioning system. No need for grating
bars to be affected by light |

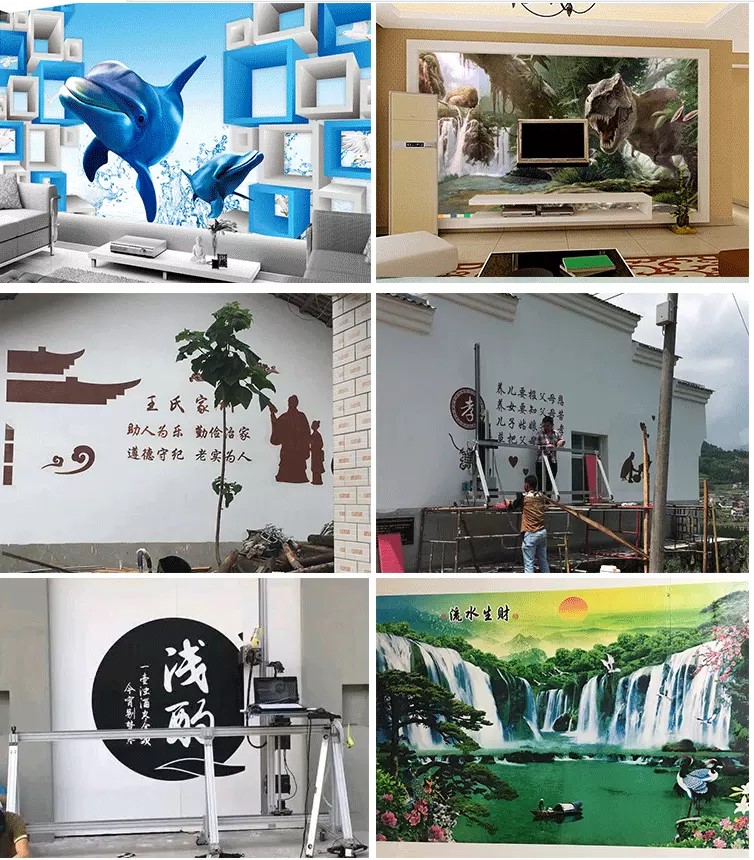

Print material
| Suitable for users inside and outside putty wall, large white,
imitation porcelain wall, latex paint wall, inkjet cloth, wall
clothing, color glaze, color paint wall, etc.Tile, glass, acrylic,
wood, pvc and metal materials ( Add layer) |
| Print resolution | 360*720dpi / 720*1080dpi / 720*1440dip / 1080*1440dpi /
1440*2880dpi |
| Support image format | PSD/CDR/JPG/JPGE/PNG/BMP/TIFF/AI/PDFAnd other image formats. Some
formats need to be converted |
| Ink consumption/㎡ | 10-20ML, depends on the quality of the pictures you want to print |
| Print size | 2m height with any width, the machine is equipped with a laser
positioning system, and large pictures over height 2 meters can be
seamlessly stitched and printed. |
| Power supply | AC110V(90-132V) / AC220V(180-264V) AC,47-63HZ |
| Noise | Standby less than 15dba, work 50dba |
| printing speed | fast | Mode | Speed | | |
| medium | sketch mode | 24㎡/h | |
| slow | produce mode | 18㎡/h | |
| three speed | quality mode | 12㎡/h | |
| | Fine mode | 9㎡/h | |
| suppying system | negative pressure,400ml ink tank,colors in one unit |
| Technology | VSDT Variable ink drop technique feature technology |
| photo format | support PNG/JPG/TIFF/PDF/PSD/AI AND CDR.ETC |
| Precision | 720x720 DPI/720X1080DPI/720X1440DPI/720X2280DPI |
| Print size | No limite |
| Power supply | AC 110V /220V Frequancy:50hz/60hz |
| power consumption | no load 20w ,load 120w |
| Noise | standby <20DBA ,Working <50DBA |
| Storage | —30 -+60℃ |
| operation | ,-10-+50℃ |
| operation system | window ,xp/ win 7/win8 ,win 10 |
| language | English and chinese
|
Higher painting speed, simple operation, free maintenance, no need
to move during work, and the mural printing machine is suitable for
large format painting, for beautiful picture, a wide range of
applications, this machine is the wall printing prior choice.
We have 10 years industry experience of digital printing, Lead the
team uphold excellence, down-to -earth, dedicated spirit, it is
committed to provide users with high quality, applicable and
pratical intelligence spray printing equipment. Our company has a
complete set of spray printing supporting scheme and after-sales
service team,and is committed to creating higt-quality products
with customer satisfaction and leading in the industry.
