    Double Sided 20W SMD3535 Outdoor LED Video Wall P8 500W/sqm

    Ask Lasest Price
    Brand Name : shervin
    Model Number : SST-F5
    Certification : CCC.CE.ROHS
    Price : 350usd-700usd/sqm
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 5000square meter per month
    Delivery Time : within 5days after your payment
    • Product Details
    • Company Profile

    Double Sided 20W SMD3535 Outdoor LED Video Wall P8 500W/sqm

    HD big led displays screen outdoor P8 fixed double sided tv LED Video Wall price


    Q1:How to choose a proper led screen for your need?
    A:You just need to think of 3 simple questions when you choose a led screen by yourself.
    1.Will you use it indoor or outdoor?
    2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
    3.what is the appoximate size of the led screen you would like to purchase?

    Q2:Which pixel pitch should i choose?
    A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).


    Q3:Which control system should i choose?
    A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.

    Q4:How to order from your compamy?
    A:You can both place order to us by alibaba online or to our company directly offline, before place order welcome to contact us for confirmation.


    Q5:How to pay?
    A:We accept payment online through alibaba, or offline to our company account by T/T bank, or paypal or western union.

    Q6:How to ship?
    A:It is optional and we respect customer's choice. You can choose to ship by air cargo, by DHL(Fedex,UPS etc) internation express company, or by sea according to your goods weight and volume and the delivery time you need.

    Q7:How to install it after i received it?
    A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.


    The detailed parameters as follows.pls check it


    Module Specification:
    Pixel Pitch8mm
    Module Size256X128mm
    LED EncapsulationSMD3535 white lamp
    Module Power Consumption≤20W
    Cabinet Specification:
    Cabinet Size768mm x 768mm
    Cabinet Resolution96dots x 96dots =9216dots
    Pixel Density 15625 dots/sqm
    Cabinet MaterialDie-cast Aluminum
    Cabinet Weight35Kg
    Brightness5500 cd/sqm
    Optimal Viewing Distance≥8m
    Driving Method1/4 scan, constant current
    Max. Power Consumption500W/sqm
    Ave. Power Consumption280 W/sqm
    Input Voltage110~220VAC±10%
    Life span≥100,000 hours( 50% brightness)

    The outdoor full color led display parameter
    NO.ItemP3.91P4P5P6P8P10
    1pixel pitch (Millimeter)3.91456810
    2Led lampSMD2727SMD3535SMD3535SMD3535SMD3535SMD3535
    3Pixel density654106250040000277771562510000
    4Module size250X250256X128320X160192X192256X128320X160
    5Module resolution64X6464X3264X3232X3232X1632X16
    6Scan mode1/81/81/81/81/81/8
    7Cabinet size500X1000768X768960X960960X9601024X1024960X960
    8Cabinet resolution128X256192X192192X192160X160128X12896X96
    9Brightness7000cd7000cd7000cd7000cd7000cd7000cd

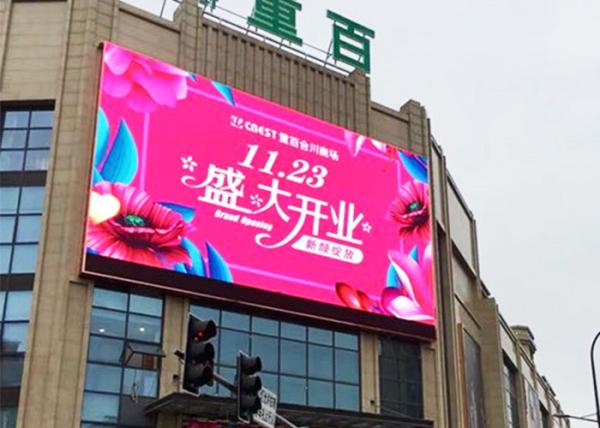

    Detailed picture as follows.



    P10 mm, 3535 packaging, a large angle of view,power consumption, color uniformity, easy maintenance and operation simple.
    High brightness, High reliability. It can be based on outdoor environment brightness, humidity, temperature automatic adjustment ,energy-saving, intelligent control.
