Shenzhen Workshop Direct wall inkjet printer for outdoor and indoor
wall decoration 3 years wareanty.
1.Original Epson TX800 4770 XP600 DX5 DX7 printhead ,1440dpi full
color image shows prefect.
2. The wall printer is fast and low-cost.make big profit by
Commercial advertising and home decorating
3. LCD English display Controlled by computer. Easy operation and
maintenance.No need any professional knowledge
4. Special pigment ink,no smell ,real color,water proof,not
fade,keep more than 8 years in outdoor and indoor
5. Full color image can complete at once. The gradients of image
has 3D effect.
6.Free software. apply to any format of the picture or
word.directly print the wall.
7. Automatic print head cleaning system, do not need to remove, and
it can finish automatically. So it can ensure the ink road
smooth.
8.12 months trouble-free warranty, Life-time technical support.all
spare parts are available from us
9. Automatic breakpoints memory, automatic recovery of the starting
position. The inkjet printer for wall mural can continue to start
tomorrow and there is no need to reset, the wall printing machine
is equipped with built-in UPS power supply, automatic charging,
automatic switching to built in power supply.
The detailed parameter as follows.
| Modle Type | SSV-2 | |
| Ink base color | Double four colors , water-based INK | |
| Paint direction | Vertical | |
| Jet distance | 0.5-1CM | |
| Motherboard | 8-core high-speed CPU, 4GB RAM, Hi-Speed USB I/O port | |
| Nozzle type | EPSON, Japan Epson nozzle*2 |
| Motor | Three Intelligent motor +Reducer |
| Wall detection | Two Nano detector |
| Power down alarm | Real-time power failure alarm system |
| UPS power | Super uninterruptible power supply, Power outage 3hours |
| Ink supply system | Four-color ink cartridge integrated, 400 ml large-capacity ink
cartridge negative pressure system for special color, with sealing
plug and dust cover |
| Motor technology | Brushless motor, vector positioning system. No need for grating
bars to be affected by light |
Print material | Suitable for users inside and outside putty wall, large white,
imitation porcelain wall, latex paint wall, inkjet cloth, wall
clothing, color glaze, color paint wall, etc.Tile, glass, acrylic,
wood, pvc and metal materials ( Add layer) |
| Print resolution | 360*720dpi / 720*1080dpi / 720*1440dip / 1080*1440dpi /
1440*2880dpi |
| Support image format | PSD/CDR/JPG/JPGE/PNG/BMP/TIFF/AI/PDFAnd other image formats. Some
formats need to be converted |
| Ink consumption/㎡ | 10-20ML, depends on the quality of the pictures you want to print |
| Print size | 2m height with any width, the machine is equipped with a laser
positioning system, and large pictures over height 2 meters can be
seamlessly stitched and printed. |
| Power supply | AC110V(90-132V) / AC220V(180-264V) AC,47-63HZ |
| Noise | Standby less than 15dba, work 50dba |
| printing speed | fast | Mode | Speed | | |
| medium | sketch mode | 24㎡/h | |
| slow | produce mode | 18㎡/h | |
| three speed | quality mode | 12㎡/h | |
| | Fine mode | 9㎡/h | |
| suppying system | negative pressure,400ml ink tank,colors in one unit |
| Technology | VSDT Variable ink drop technique feature technology |
| photo format | support PNG/JPG/TIFF/PDF/PSD/AI AND CDR.ETC |
| Precision | 720x720 DPI/720X1080DPI/720X1440DPI/720X2280DPI |
| Print size | No limite |
| Power supply | AC 110V /220V Frequancy:50hz/60hz |
| power consumption | no load 20w ,load 120w |
| Noise | standby <20DBA ,Working <50DBA |
| Storage | —30 -+60℃ |
| operation | ,-10-+50℃ |
| operation system | window ,xp/ win 7/win8 ,win 10 |
| language | English and chinese
|
Our machine can be used outside and inside .The pictures can be
very clearly. Hope you love our effect!

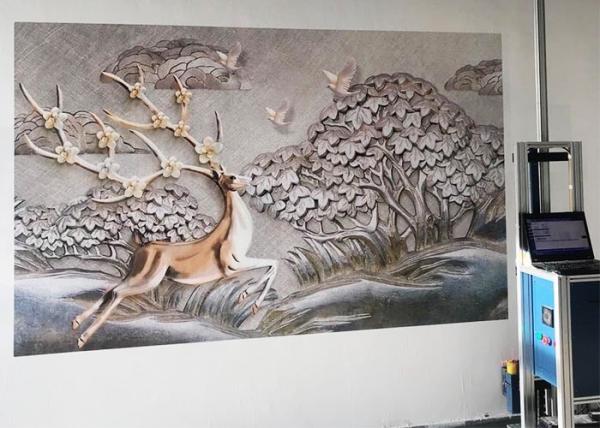

Indoor:
Home decoration background wall series, Internet bar wall decoration ,water bar or bar interior wall theme , office cultural wall theme , mall activity poster color painting, kindergarten indoor fairy tale world cartoon drawing, underground parking lot theme etc
Outdoor:
Municipal Engineering external wall culture safety publication,
Hotel exterior wall theme, supermarket milk tea shop door
activities publicity, playground wall, kindergarten wall. Outdoor
wall advertising spray painting, stage background wall, etc
